Laser Cutting

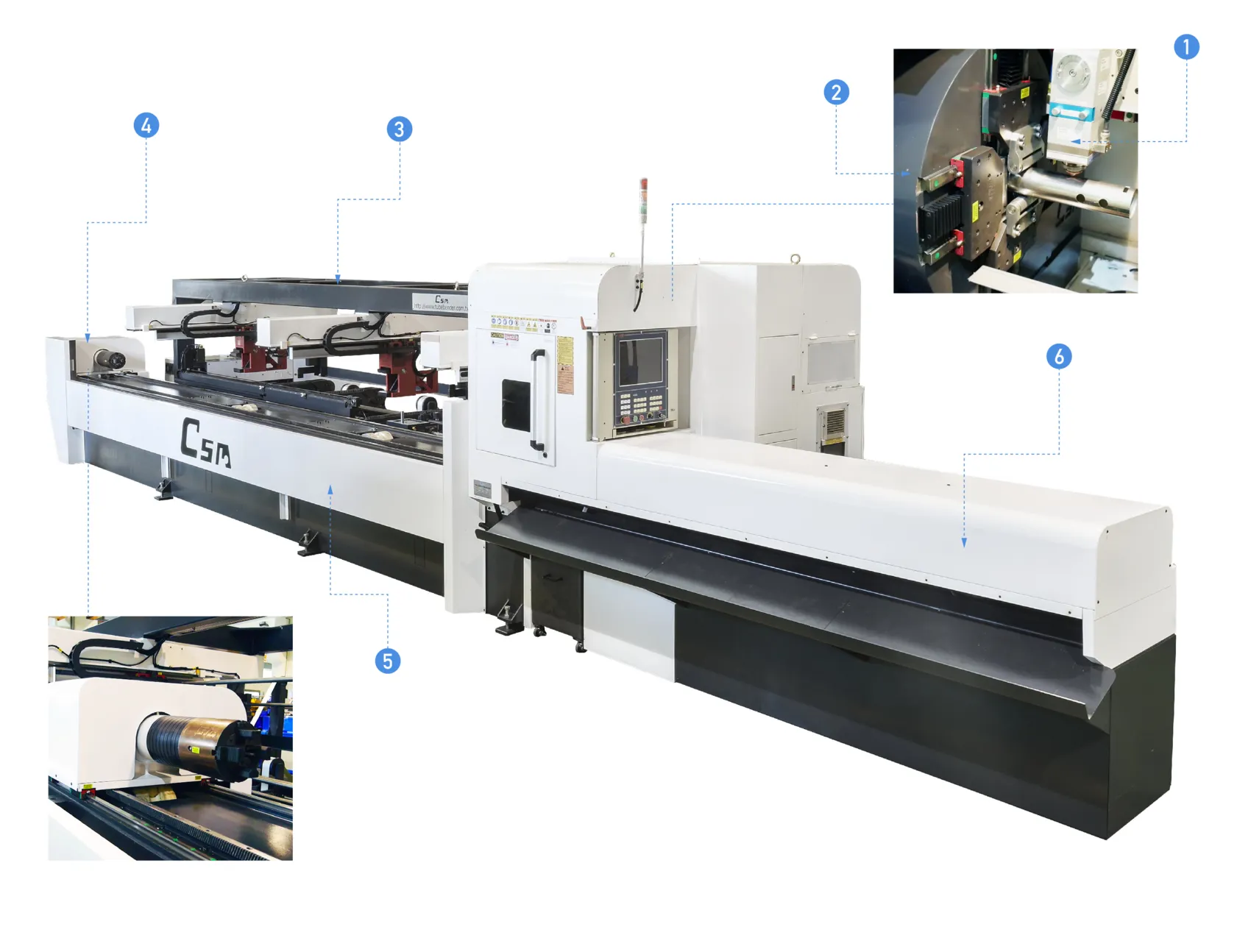

LS150-4 filber laser cutting machine
- max capacity : OD20~150 mm
- max loading length @6000 mm
- min material waste (rear end) @45 mm
- 5 servo axes synchronization
1.fiber laser head :
- automatic calibration
- plain & upright motion by servo drive with speed @500 mm/sec
- capable of cutting circular、square、rectangular、elliptic and flat oval tube
- positioning repeatability ±0.03 mm
2.front chuck :
- exclusive design with international patent rotation by servo drive
- clamping by pneumatic
- coupling design, optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
3.tube loader facilitates job scheduling and applicable to tube with different shape and OD
4.carriage :
- feeding by servo drive with speed @777 mm/sec and max working distance @6700 mm
- rear chuck with exclusive design and international patent
- rotation by servo drive
- clamping by pneumatic
- coupling design,optimized for clamping either circular or rectangular/square/elliptic/flat oval tube
5.safety barrier driven by pneumatic, ensures safety in addition to easy access for maintenance
6.customized unloader adapting to tube with variable shape and OD
Specification | Unit | LS208-4 | LS150-4 |
max raw tube loading length | mm | 6000 | 6000 |
min materical waste length | mm | 140 | 45 |
X-axis working distance/laser head plain motion | mm | 220 | 200 |
X-axis speed | mm/sec | 500 | 500 |
Y-axis working distance/carriage feeding | mm | 6600 | 6700 |
Y-axis speed | mm/sec | 834 | 777 |
Z-axis working distance/laser head upright motion | mm | 150 | 110 |
Z-axis speed | mm/sec | 500 | 500 |
B & B1-axis speed/front & rear chuck | degree/sec | 375 | 450 |
max cutting capacity / OD | mm | 20~208 | 20~150 |
positioning repeatability | mm | ±0.03 | ±0.03 |
machine dimension (length x width x height) | mm | 10500x1800x2400 | 11000x1800x2100 |
Laser generator | fiber | fiber | |
max laser power | (alternative) | 1000W 1500W 2000W 3000W | 1000W 1500W 2000W |
