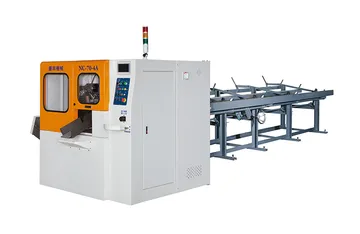

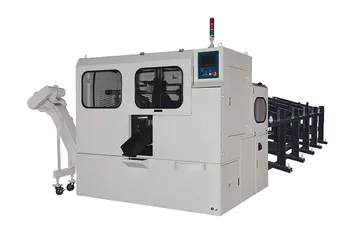

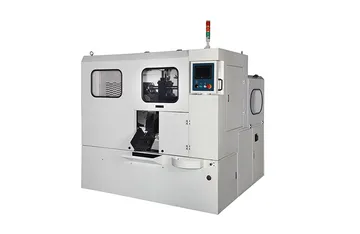

| MODEL | NC-70-4A | NC-100-4A | NC-150-4A |
|---|---|---|---|
| Cut-off Capacity-Round bar | 8-70 mm | 20-100 mm | 35-150 mm |
| Cut-off Capacity-Square bar | 8-55 mm | 20-80 mm | 70-110 mm |
| Length of rest material | 65+cutting length | 70+cutting length | 70+cutting length |
| Material length can be put | 2000-6000 mm | 2000-6000 mm | 2000-6000 mm |
| Feeding length per time | 650 mm | 580 mm | 580 mm |
| TCT carbide tipped saw blade | 280x2.0x32 | 360x2.6x40 | 460x2.7x50 |
| HSS saw blade | 250-275mmx2.0(optional) | 350mmx2.5(optional) | 450mmx3.0(optional) |
| Saw blade rotation speed | 18-200 rpm | 18-160 rpm | 18-140 rpm |
| Chip cleaner for saw blade | Round steel brush | Round steel brush | Round steel brush |
| Spindle driving motor | 10HP/ 4P | 15HP / 4P | 20HP / 4P |
| Feed Servo motor | 1 KW | 2 KW | 2 KW |
| Cutting | Hydraulic motor 1 KW | Servo motor 3 KW | Servo motor 3 KW |
| Hydraulic pump motor | 3HP/4P | 3HP/4P | 5HP/4P |
| Work driving pressure | 70 kg/cm2 | 70 kg/cm2 | 70 kg/cm2 |
| Work operating pressure | 4-6 kg/cm2 | 4-6 kg/cm2 | 4-6 kg/cm2 |
| Cut-off cooing | Air compressed oil mist | Air compressed oil mist | Air compressed oil mist |
| Cutting Fluid motor | 0.19 kw /4 P | - | - |
| Oil tank capacity | 95 L | 110 L | 110 L |
| Machine Dimension(LxWxH) | L1980xW2100xH1870mm | L2140xW2150xH2020mm | L2240xW2180xH2100mm |
| Machine Dimension(including rack)LxWxH | L6900xW1980xH1870mm | L7100xW2140xH2020mm | L7100xW2240xH2100mm |
| Machine Weight(kg) | 3200 kgs | 3800 kgs | 4200 kgs |
