NC hydraulic single axis TNCB bending machine

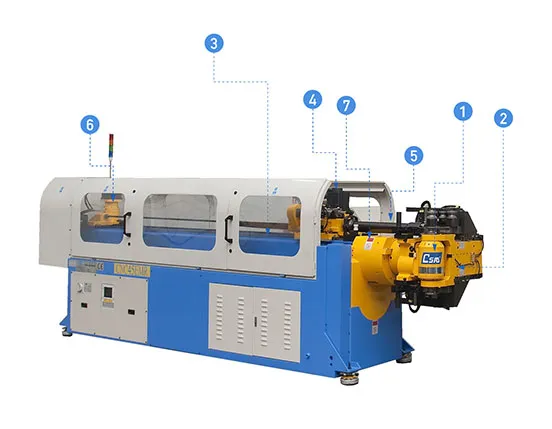

CNC all electric left & right hand tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
15	1.5	10-55	1000	3+3			15 EMB
20	1.5	10-80	1500	3+3			20 EMB
20	1.5	10-80	1500	3+3	yes		20 EMR
32	1.8	25-128	3500	3+3	yes		32 MBRE
30	2	15-90	2800	3+3	yes		30 EMR
45	1.6	30-150	3000	3+3	yes		45 EMR
76.2	2	40-230	3000	3+3	yes	servo	75 EMR

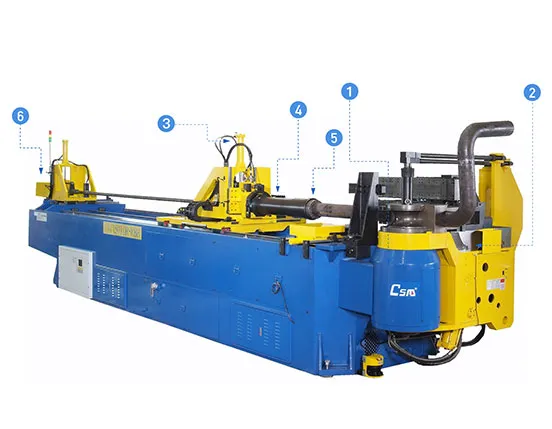

CNC all electric MRE2-RBE tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
50.8	1.8	30-150	2500	3	yes	servo	50 MRE2-RBE
80	2.5	40-230	3000	3	yes	servo	80 MRE2-RBE
100	3.6	30-300	3000	3	yes	servo	100 MRE2-RBE

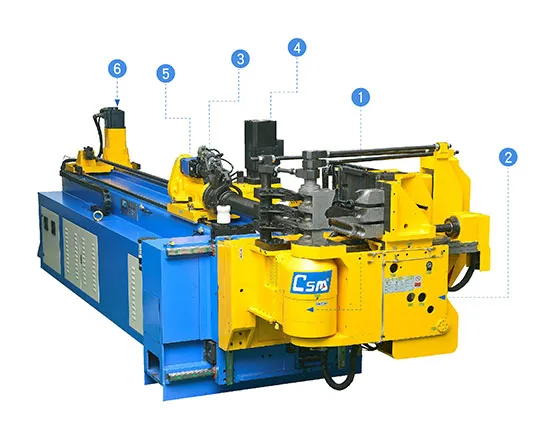

CNC electric hybrid MBE / MRE tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
18	1.6	10-80	1200	3			18 MBE
25.4	1.5	15-120	1500	3			25 MBE
30	2	15-120	2200	3			30 MBE
38.1	1.8	25-150	2200	3			38 MBE
50.8	2	30-220	2500	3			50 MBE
65	2.5	35-250	2500	3			65 MBE
80	2.5	40-280	3500	3			80 MBE
100	3	30-300	3500	3			100 MBE
65	2.5	35-250	2500	3		servo	65 MBE-RBE
80	2.8	40-280	3500	3		servo	80 MBE-RBE
100	3.6	30-300	3500	3		servo	100 MBE-RBE
127	3.8	80-400	4000	3		servo	130 MBE-RBE
18	1.6	10-80	1200	3	yes		18 MRE
25.4	1.5	15-120	1500	3	yes		25 MRE
30	2	15-120	2200	3	yes		30 MRE
38.	1.8	25-150	2200	3	yes		38 MRE
50.8	2	30-220	2500	3	yes		50 MRE
65	2.5	35-250	2500	3	yes		65 MRE
80	2.5	40-280	3500	3	yes		80 MRE
65	2.5	35-250	2500	3	yes	servo	65 MRE-RBE
80	2.8	40-280	3500	3	yes	servo	80 MRE-RBE
100	3.6	30-300	3500	3	yes	servo	100 MRE-RBE
127	3.8	80-400	4000	3	yes	servo	130 MRE-RBE
152.4	3	90-400	4000	3	yes	servo	150 MRE-RBE

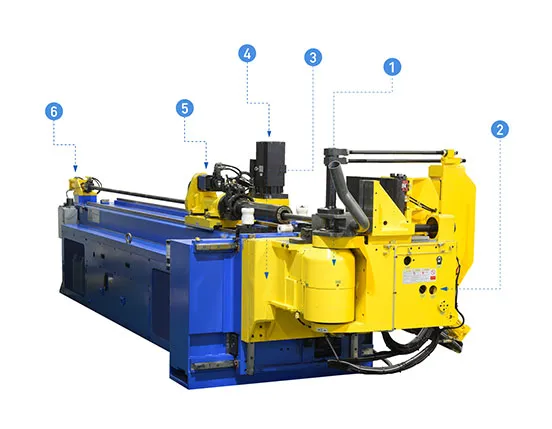

CNC electric hybrid TBRE / TMRE tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
25.4	1.5	15-120	1500	2	yes		25 TBRE
30	2	15-120	2200	2	yes		30 TBRE
38.1	1.8	25-150	2200	2	yes		38TBRE
50.8	2	30-220	2500	2	yes		50 TBRE
65	2	35-250	2500	2	yes		65 TBRE
80	2.5	40-280	3500	2	yes		80 TBRE
100	3	30-300	3500	2	yes		100 TBRE
65	2.5	35-250	2500	2	yes	servo	65 TBRE-RBE
80	2.8	40-280	3500	2	yes	servo	80 TBRE-RBE
100	3.6	30-300	3500	2	yes	servo	100 TBRE-RBE
127	3.8	80-400	4000	2	yes	servo	130 TBRE-RBE
25.4	1.5	15-120	1500	3	yes		25 TMRE
30	2	15-120	2200	3	yes		30 TMRE
38.1	1.8	25-150	2200	3	yes		38 TMRE
50.8	2	30-220	2500	3	yes		50 TMRE
65	2	35-250	2500	3	yes		65 TMRE
80	2.5	40-280	3500	3	yes		80 TMRE
100	3	30-300	3500	3	yes		100 TMRE
65	2.5	35-250	2500	3	yes	servo	65 TMRE-RBE
80	2.8	40-280	3500	3	yes	servo	80 TMRE-RBE
100	3.6	30-300	3500	3	yes	servo	100 TMRE-RBE
CNC electric hybrid TDRE tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
12	1	12-55	1000	2			12 TDRE
18	1.6	10-80	1200	2			18 TDRE
25.4	1.5	15-120	1500	2			25 TDRE
30	2	15-120	2200	2			30 TDRE
38.1	1.8	25-150	2200	2			38 TDRE
50.8	2	30-220	2500	2			50 TDRE
65	2	35-250	2500	2			65 TDRE
80	2.5	40-280	3500	2			80 TDRE
100	3	30-300	3500	2			100 TDRE
65	2.5	35-250	2500	2		servo	65 TDRE-RBE
80	2.8	40-280	3500	2		servo	80 TDRE-RBE
100	3.6	30-300	3500	2		servo	100 TDRE-RBE

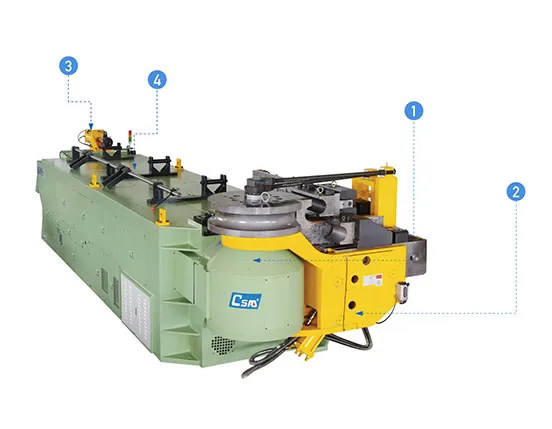

CNC hydraulic TSR / TDR tube bending machine
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no,
38.1	3	25-150	2200	1			38 TSR
50.8	3	30-220	2200	1			50 TSR
65	3	35-250	2500	1			65 TSR
80	4.5	40-280	3000	1			80 TSR
101.6	5.5	60-400	3600	1			100 TSR
120	5.5	80-450	5000	1			120 TSR
152.4	7	90-500	6000	1			150 TSR
180	9	100-600	6000	1			180 TSR
220	8	100-700	6000	1			220 TSR
80	5.5	32-345	3000	1		hydraulic	80 TSR-RBF
101.6	5.5	30-400	3600	1		hydraulic	100 TSR-RBF
120	5.5	80-450	5000	1		hydraulic	120 TSR-RBF
50.8	3	30-220	2200	1		hydraulic	50 TSR-RBH
65	3	35-250	2500	1		hydraulic	65 TSR-RBH
80	4.5	40-250	3000	1		hydraulic	80 TSR-RBH
101.6	5.5	60-400	3600	1		hydraulic	100 TSR-RBH
120	5.5	80-450	5000	1		hydraulic	120 TSR-RBH
152.4	7	90-500	6000	1		hydraulic	150 TSR-RBH
38.1	3	25-150	2200	2			38 TDR
50.8	3	30-220	2200	2			50 TDR
65	3	35-250	2500	2			65 TDR
80	4.5	40-280	3000	2			80 TDR
101.6	5.5	60-400	3600	2			100 TDR
120	5.5	80-400	5000	2			120 TDR
152.4	7	90-500	6000	2			150 TDR
101.6	5.5	60-400	3600	2		hydraulic	100 TDR-RBH
152.4	7	90-500	6000	2		hydraulic	150 TDR-RBH

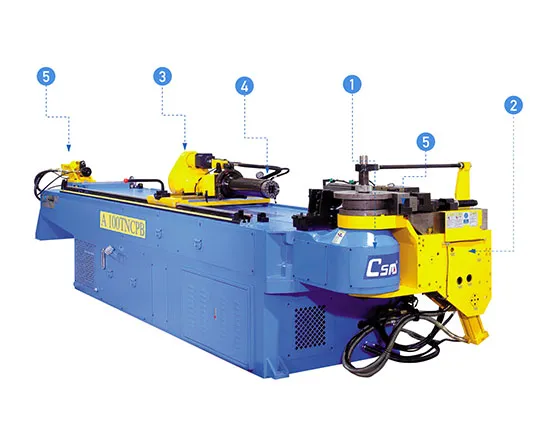

NC hydraulic TNCPB tube bending machine (with manual feeding)
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
50.8	3	30-220	2100	1			50 TNCPB
76.2	3	40-250	2400	1			75 TNCPB
88.9	2.5	50-300	2600	1			89 TNCPB
101.6	5.5	60-400	3600	1			100 TNCPB
OD	WT	CLR	mandrel working distance	tooling capacity	roll bending	rear booster	CSM part no.
38.1	3	25-170	1900	1			38 TNCB
50.8	3	30-250	2200	1			50 TNCB
76.2	3	40-300	2600	1			75 TNCB
88.9	2.5	40-350	2600	1			89 TNCB
101.6	5.5	60-400	3600	1			100 TNCB
127	3.5	80-450	5200	1			120 TNCB
152.4	7	90-500	6000	1			150 TNCB
180	9	100-600	6000	1			180 TNCB
220	8	100-700	6000	1			220 TNCB
76.2	3	40-300	2600	1		hydraulic	75 TNCB-CBF
127	5.5	80-400	5200	1		hydraulic	120 TNCB-CBF
127	5.5	60-450	5200	1		hydraulic	120 TNCB-RBF
220	7	100-1000	6000	1		hydraulic	220 TNCB-RBF
