NC Tube Benders
A 38/50 TNCB
| Specification | UNIT | A 38 TNCB | A 50 TNCB |
|---|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 38.1×3.0 | 50.8×3.0 |
| Bending radius(CLR)/round tube | mm | 25~170 | 30~250 |
| Max length over Mandrel | mm | 1900 | 2200 |

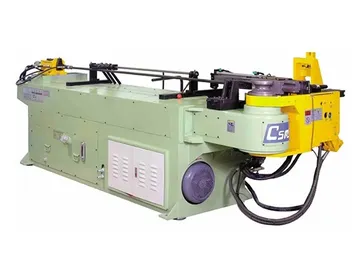

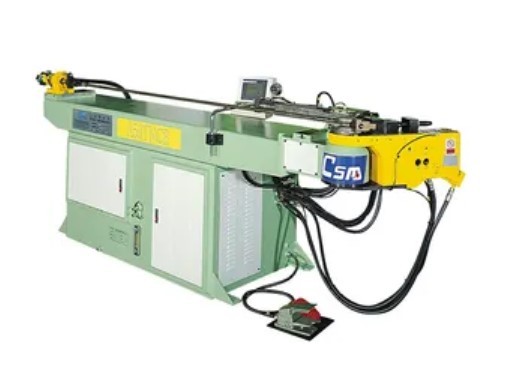

A 75/89 TNCB
| Specification | UNIT | A 75 TNCB | A 89 TNCB |
|---|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 76.2×3.0 | 89×4.0 |
| Bending radius(CLR)/round tube | mm | 40~260 | 50~300 |
| Max length over Mandrel | mm | 2400 | 2600 |

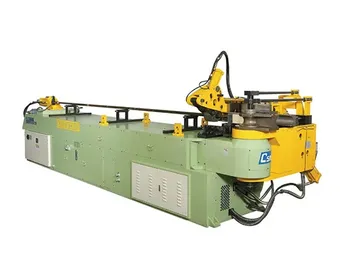

A 100/120 TNCB
| Specification | UNIT | A 100 TNCPB | A 120 TNCB |
|---|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 101.6×5.5 | 127X5.5 |
| Bending radius(CLR)/round tube | mm | 60~400 | 80~500 |
| Max length over Mandrel | mm | 3600 | 5200 |

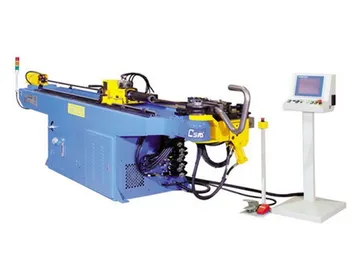

A 50 TNCPB
| Specification | UNIT | A 50 TNCPB |
|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 50.8×3.0 |
| Bending radius(CLR)/round tube | mm | 30~230 |
| Max length over Mandrel | mm | 2100 |
z-z1538135161600.webp)

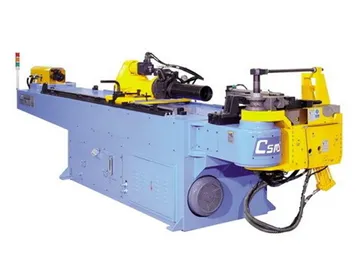

A 89 TNCPB
| Specification | UNIT | A 89 TNCPB |
|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 89×4.0 |
| Bending radius(CLR)/round tube | mm | 50~300 |
| Max length over Mandrel | mm | 2600 |

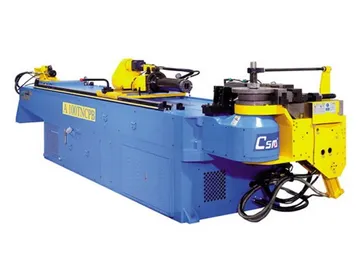

A 100 TNCPB
| Specification | UNIT | A 100 TNCPB |
|---|---|---|
| Max bending capacity/mild steel（S=40kgf/mm2） | mm | 101.6×5.5 |
| Bending radius(CLR)/round tube | mm | 60~400 |
| Max length over Mandrel | mm | 3600 |
